Guava Puree/Concentrate Processing Line

Guava Puree/Concentrate Processing Line

Introduction of Our Guava Puree/Concentrate Processing Line:

Our guava puree/concentrate processing line is a highly efficient and intelligent processing line covering the entire process from fresh guava to finished product(guava puree) packaging. The line mainly includes a receiving pool, bubbling washing machine, roller sorter, crushing machine, preheating machine, pulping machine, UHT sterilization machine, and aseptic filling machine. Modern production lines are engineered to maximize yield, preserve natural flavors.

Sunshine Machinery (Shanghai) Co., Ltd.

Final Product

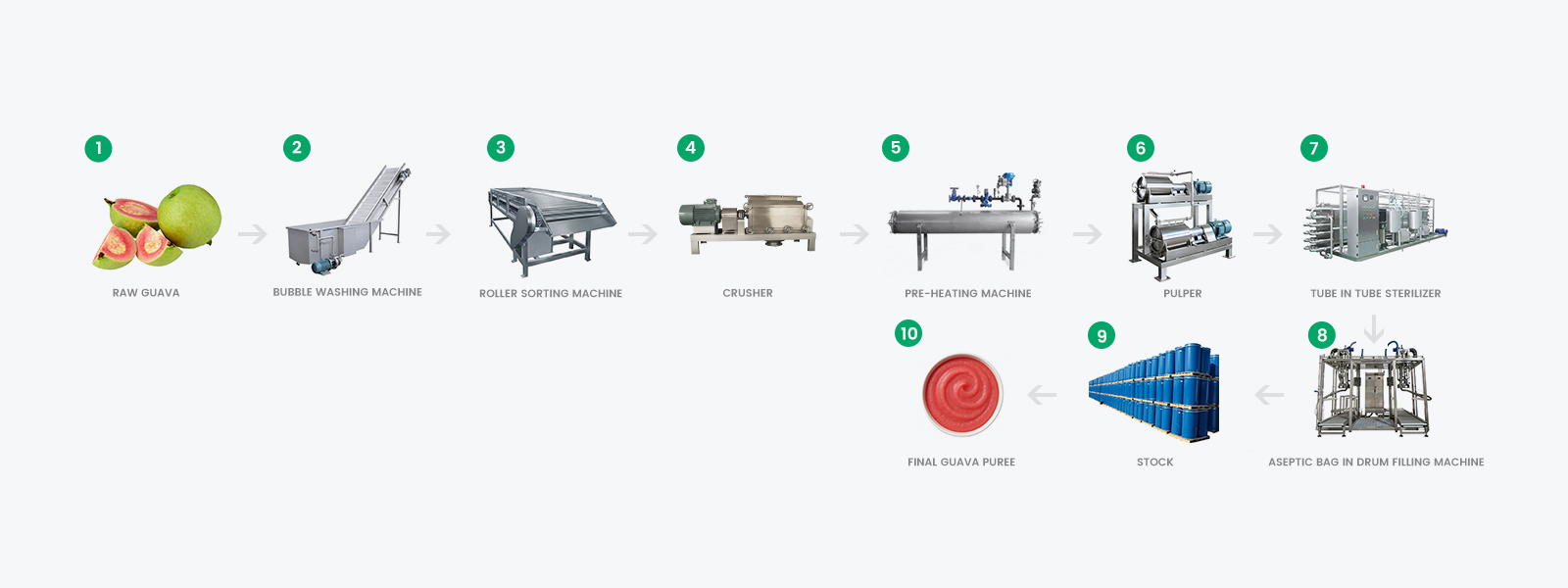

Processing Flow

Features and Advantages

Adopting advanced Italian technology that meets European standards, our smart production line features low-temperature vacuum evaporation technology to minimize the loss of flavor and nutrients, equipped with a fully automatic PLC control system and world-brand accessories.
  • Sunshine Machinery (Shanghai) Co., Ltd.
  • Sunshine Machinery (Shanghai) Co., Ltd.
  • Sunshine Machinery (Shanghai) Co., Ltd.
  • Sunshine Machinery (Shanghai) Co., Ltd.
  • Sunshine Machinery (Shanghai) Co., Ltd.
  • Sunshine Machinery (Shanghai) Co., Ltd.
  • Sunshine Machinery (Shanghai) Co., Ltd.

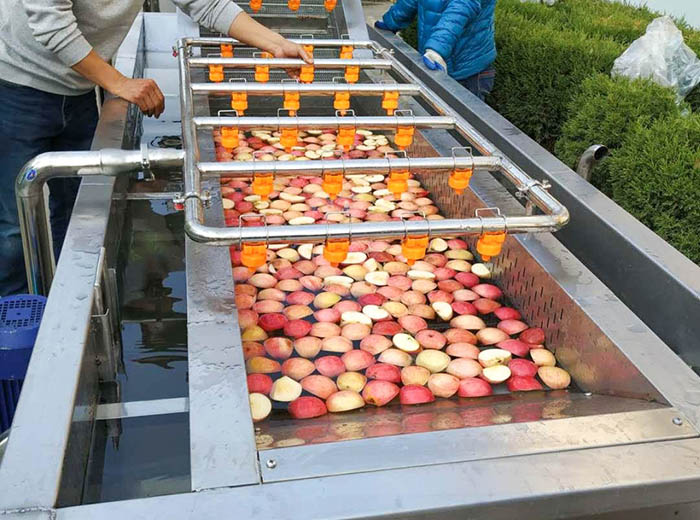

  • 2. Bubble Washing Machine

    Bubble washing machine is use to wash the raw guava.
    2. Bubble Washing Machine

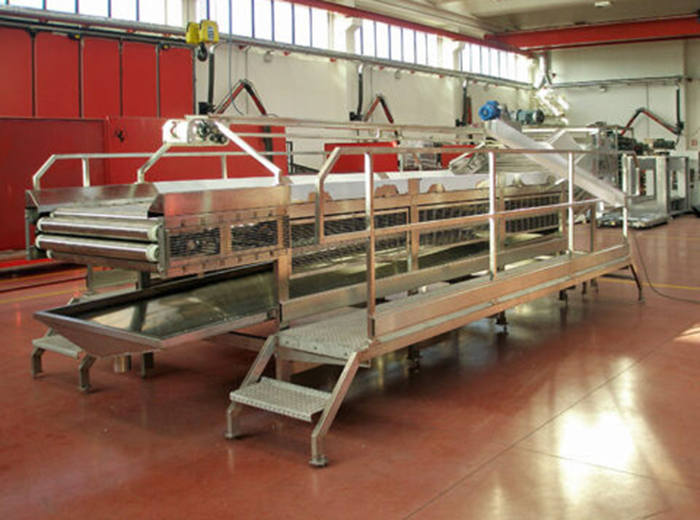

  • 3. Roller Sorting Machine

    Then the sorting machine is for worker to take out the rotten and bad guava.
    3. Roller Sorting Machine

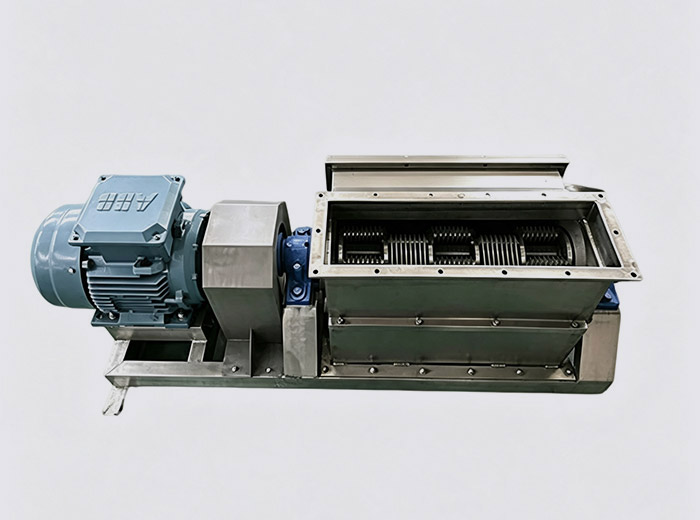

  • 4. Crusher

    Crushing machine is use to make guava be crushed.
    4. Crusher
  • 5. Pre-heating Machine

    Pre-heating machine is to deactivating pectinase to control the viscosity of the guava puree.
    5. Pre-heating Machine

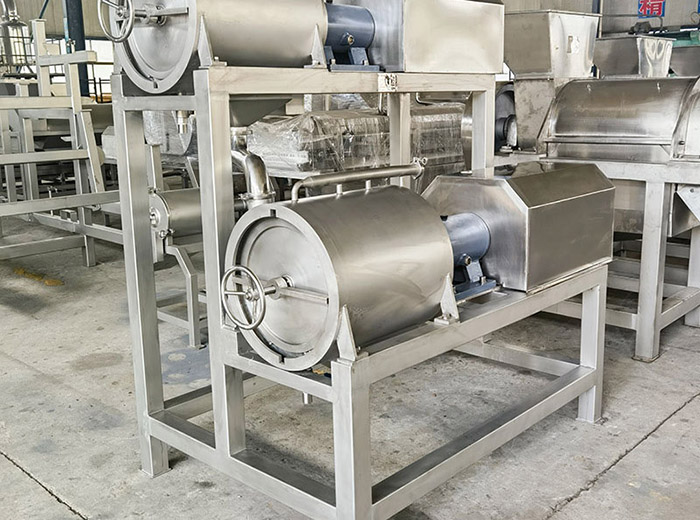

  • 6. Pulper

    After pre-heating, the crushed guava will go to pulping machine.
    6. Pulper

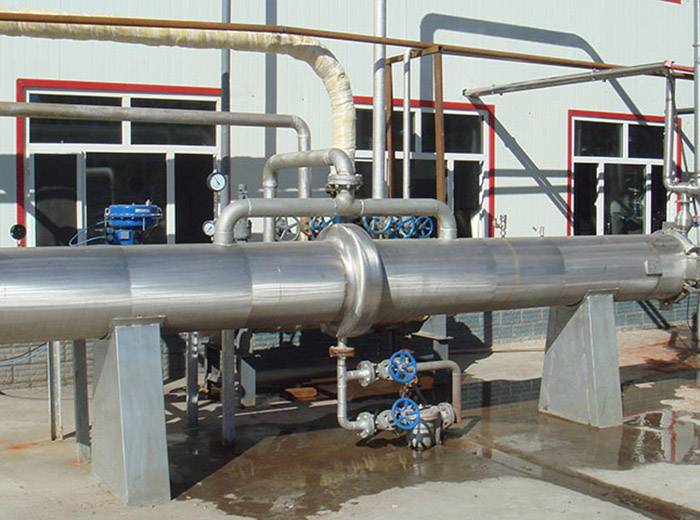

  • 7. Tube in Tube Sterilizer

    After pulping , the guava puree need be sterilizing by the UHT sterilizer.
    7. Tube in Tube Sterilizer

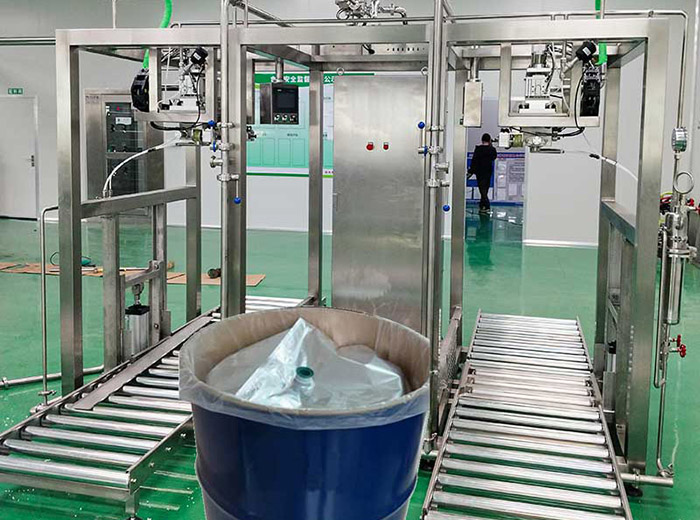

  • 8. Aseptic Bag in Drum Filling Machine

    After sterilization , the guava puree will be filled into aseptic bag by aseptic filling machine.
    8. Aseptic Bag in Drum Filling Machine

Basic Description

ITEM

SPECIFICATION

Major material

Guava

Minor ingredient

Vc, citric acid (adding during juice extraction)

Final product

Puree/concentrate

Final product package

Aseptic bag (5L-220L, 1000L)

Process capacity

2~25 tons/hr fresh fruits input

Budget

200,000~2,500,000USD

Main characters

1-  The UHT sterilizer and aseptic bag filler is incorporated Italian technologies and improved based on our rich experience, which can retain the fruits’ nature color, flavor and nutrition at the maximum. As well, our patented technology (the heat regeneration by the cold and hot product’s exchange) for sterilizer can save the energy over 30% than traditional.

2-  The design of the process flow and the piping consider to retain the original natural flavor, aroma, color and nutrient at the maximum. For example, all the temp rising or dropping are finished in a very short time and short distance to avoid the flavor’s escaping or disruption during the heat treatment.

3-  The optimal proposal is designed and customized upon the client’s project specified requirements and actual conditions based on the principle of “advanced process flow, simple structure equipment, reliable running and energy saved”. Meanwhile, we can design multi-fruit combined processing line as per the local resource available so as to maximum the equipment’s using efficiency.

4-  The PLC control system and main electric components from SIEMENS, SCHNEIDER or other reliable international brand to ensure the reliable and high auto running.

Our Information

Our Clients

  • Tomato Juice Project
    Tomato Juice Project

    Sunshine Machinery (Shanghai) Co., Ltd. Germany

    Sunshine Machinery (Shanghai) Co., Ltd. Tomato Juice Project

  • Apple Juice Project
    Apple Juice Project

    Sunshine Machinery (Shanghai) Co., Ltd. Germany

    Sunshine Machinery (Shanghai) Co., Ltd. Apple Juice Project

  • Orange Juice Project
    Orange Juice Project

    Sunshine Machinery (Shanghai) Co., Ltd. America

    Sunshine Machinery (Shanghai) Co., Ltd. Orange Juice Project

  • Tomato Sauce Project
    Tomato Sauce Project

    Sunshine Machinery (Shanghai) Co., Ltd. America

    Sunshine Machinery (Shanghai) Co., Ltd. Tomato Sauce Project

  • Apple Juice Project
    Apple Juice Project

    Sunshine Machinery (Shanghai) Co., Ltd. Italy

    Sunshine Machinery (Shanghai) Co., Ltd. Apple Juice Project

  • Tomato Juice Project
    Tomato Juice Project

    Sunshine Machinery (Shanghai) Co., Ltd. Italy

    Sunshine Machinery (Shanghai) Co., Ltd. Tomato Juice Project

Related FAQ
Frequently
Asked Question

Through common questions, you can better understand the company's products, as well as the solutions to issues related to production and after-sales service.

Contact Us
  • How soon can I get a reply after sending an inquiry?
    We attach great importance to every inquiry. We will respond to you within 12 working hours upon receipt of your inquiry.

  • Are you a factory or a trading company?
    We are a professional direct manufacturer with independent production capacity, equipped with a complete production team and after-sales service system. We focus on full production lines and turnkey project solutions for juice, jam, beverage and other liquid food processing industries. Guava Puree Processing Line Manufacturers in China. We can provide personalized design and overall solutions according to customers’ actual site conditions and production requirements, helping customers create greater market value and profits.

  • What is your production capacity?
    We can provide complete processing lines for tomato sauce, tropical fruit juice and jam, and other fruit and vegetable processing projects in small, medium and large scales. The production capacity ranges from 200kg to 30 tons of fresh raw materials per hour.

  • How do you guarantee product quality?
    As Guava Puree Production Line Suppliers and Guava Concentrate Processing Line Factory. We implement full-process quality management. All equipment will undergo complete trial operation and water debugging before delivery to ensure stable performance and qualified quality.

  • What payment terms do you accept?
    We will confirm detailed trade terms such as FOB and CIF according to the quotation. We accept T/T and L/C payment methods.

  • How do you arrange cargo transportation?
    We mainly adopt sea transportation. Our factory is about 150 kilometers away from Shanghai Port, enjoying convenient logistics conditions.

  • What are your main export markets?
    Our products are exported to more than 30 countries and regions worldwide, including Australia, Italy, Turkey, Mexico, India, Kazakhstan, Uzbekistan, South Africa, Ethiopia, Tanzania and other markets. As Customized Guava Puree/Guava Concentrate Production Line Solutions, we have provided professional products and services for nearly 100 global enterprises.

Sunshine Machinery (Shanghai) Co., Ltd.

About Us

Sunshine Machinery

Sunshine is a sophisticated high-tech enterprise dedicated to supplying cutting-edge technologies, high-quality products, reliable customized solutions and premium services to global food processors, suppliers and clients worldwide. We deliver full-plant machinery and turnkey engineering solutions covering fruit and vegetable processing, juice and beverage production, ketchup and sauce manufacturing, dairy processing and other liquid food processing lines. Customized Guava Puree/Concentrate Processing Line. Our one-stop services cover the entire project process, including professional design, independent R&D, standardized manufacturing, on-site installation and commissioning, technical training and comprehensive after-sales support.
We are fully capable and ready to provide not only standalone equipment, but also optimal customized solutions that are professional, scientific, cost-effective, energy-saving and eco-friendly. Guava Puree Processing Line Manufacturers. Tailored to your actual production demands and site conditions, our applicable project scales range from large industrial lines (5~50T/Hr) and medium-sized production plants (1~5T/Hr) to mini production lines (200~1000kg/Hr), pilot test lines (50~200kg/Hr) and laboratory equipment. In plant design, we always adhere to the core principle of “process flow first, process serves finished products, and equipment serves process flow”. In equipment design, we strictly follow the design concept of “optimized function, simplified structure, convenient operation, lower maintenance cost and maximized customer benefits”. We insist on continuous technological innovation and quality improvement to ensure stable and reliable product performance and service quality.
  • 2014

    Establishment time

  • 100 +

    Number of employees

  • 35000 m²

    Company area

  • 30 +

    Exporting country

Our Service Commitment
Unlike traditional equipment suppliers who focus solely on after-sales support, we offer integrated pre-sale, in-sale, and after-sale services
  • Pre-Sale
    We analyze your project requirements, local conditions, and investment budget to provide rationalized design and sustainable development planning.
  • In-Sale
    We maintain close communication throughout manufacturing, providing guidance on plant layout, building planning, and auxiliary facilities.
  • After-Sale
    We provide on-site installation, commissioning, and training. After commissioning, we can leave 1-2 engineers on-site to assist with initial production. We also conduct annual pre-season visits for equipment inspection, maintenance, and technology upgrades.
Message Feedback

Our Information

NEWS & MEDIA

Industry knowledge

Sunshine Machinery (Shanghai) Co., Ltd. designs and builds a complete Guava Puree Processing Line that takes fresh guava through receiving, washing, sorting, crushing, pre-heating, pulping, UHT sterilization and aseptic filling into a finished puree or concentrate packed in aseptic bags.

Working from Shanghai, we engineer each line around the product you intend to sell — its color, viscosity, aroma and shelf life — rather than around a fixed machine list. Process capacity spans 2 to 25 tons per hour of fresh fruit input, with project budgets typically between USD 200,000 and USD 2,500,000 depending on scope.

What Our Guava Line Covers

The line is a continuous process train. Fruit is dumped into a receiving pool, washed in a bubble washing machine, inspected on a roller sorting table where operators remove rotten and damaged fruit, then crushed and pre-heated. Pre-heating deactivates pectinase so the viscosity of the puree stays under control before pulping. The pulper separates seed and skin from the puree, which is then sterilized in a tube-in-tube UHT unit and filled aseptically into bag-in-drum packaging.

Guava is a high-pectin, seed-heavy fruit, so the pulping and finisher stage carries most of the yield risk. We size the pulper screen and rotor clearance to the cultivar and ripeness you process, and we set the pre-heating hold so the enzyme is deactivated without cooking the fruit's characteristic pink color and musky aroma.

Process Sequence and Equipment Role

Stage Equipment Function
Receiving Receiving pool Buffers incoming fruit and feeds the washer at a steady rate
Washing Bubble washing machine Loosens soil and field debris from whole guava
Inspection Roller sorting machine Rotates fruit for visual inspection and manual removal of defects
Size reduction Crusher Breaks fruit into a pumpable mash
Enzyme control Pre-heating machine Deactivates pectinase to fix puree viscosity
Extraction Pulper and finisher Separates puree from seed and skin
Sterilization Tube-in-tube UHT sterilizer Short-time heat treatment with heat regeneration
Packing Aseptic bag-in-drum filler Fills sterilized puree into 5 L to 220 L or 1000 L aseptic bags

Key Machines in the Range

Each stage is also supplied as a standalone unit, so a plant can upgrade one section of a Guava Puree Production Line without replacing the whole train. The core machines we build for guava duty are:

  • Fruit Crusher — stainless contact parts, sized to the throughput of the downstream pulper.
  • Fruit Pulper & Finisher — screen and paddle configuration matched to guava seed size and target pulp fineness.
  • Tube in Tube Sterilizer — rapid temperature rise and fall to limit flavor loss.
  • Aseptic BID (Bag in Drum) Filler — the standard packing route for bulk puree and concentrate.

Where the product is a concentrate rather than a single-strength puree, we add evaporation upstream of sterilization. A Guava Concentrate Processing Line from us can use our forced external circulation vacuum evaporator or falling film vacuum evaporator, both of which remove water at low temperature so the volatile aroma fraction survives the concentration step.

Specifications That Shape the Configuration

The table below summarizes the working envelope we quote against. Final figures are fixed per project once the fruit, product target and site utilities are confirmed.

Parameter Range / Option
Major material Fresh guava
Minor ingredients Vitamin C, citric acid added during extraction
Final product Puree or concentrate
Final package Aseptic bag, 5 L to 220 L and 1000 L
Process capacity 2 to 25 t/h fresh fruit input
Control system Fully automatic PLC, SIEMENS or SCHNEIDER main components
Heat recovery Cold/hot product exchange on the sterilizer, saving over 30% energy versus conventional designs

Flavor and Color Retention by Design

Guava aroma compounds are volatile and its color is heat-sensitive. Our process design keeps every temperature rise and drop short in time and distance, so the product is not held at high temperature longer than the sterilization target requires. The tube-in-tube sterilizer uses heat regeneration between outgoing hot product and incoming cold product, which cuts steam demand and reduces the thermal load on the puree at the same time.

Piping layout follows the same logic: dead legs and long transfer runs are avoided so that puree does not sit in warm lines between stages. Where a plant processes more than one fruit, we can design a combined line that shares washing, sterilization and filling capacity across guava, mango and other tropical purees, raising equipment utilization across the season.

Controls, Installation and Utilities

The line runs on a PLC control system with main electrical components from SIEMENS, SCHNEIDER or comparable international brands. Operator interfaces are configured around the actual sequence — wash, sort, crush, pre-heat, pulp, sterilize, fill — so setpoints for pre-heating temperature, pulper throughput and sterilization temperature are adjusted from one system rather than at each machine.

  • Utilities to plan for: steam, chilled water, compressed air, process water and three-phase power; consumption figures are issued with the layout drawing.
  • Layout: we prepare plant layout recommendations and building planning guidance during the in-sale stage, including auxiliary facility requirements.
  • Installation: our engineers provide on-site guidance for installation, commissioning and operation, followed by operator training.
  • Handover: after commissioning, one or two engineers can remain on site to support the first production runs.

Quality Control and Acceptance

We apply full-process quality management from fabrication through to dispatch. Every machine completes a full trial run and water debugging before delivery, so mechanical rotation, seals, pumps and control interlocks are proven before the equipment leaves the works. Inspection before delivery confirms components against the agreed specification.

At site, acceptance follows the commissioning sequence: water test, then product run, then verification of the agreed puree parameters and filling weights. Sterilization temperature records and filling logs from the trial run form part of the handover documentation, together with operating and maintenance manuals and the spare parts list.

Maintenance, Spare Parts and Season Support

Wear items on a guava line are concentrated in the pulper screen and paddles, crusher blades, pump seals and the filler's filling valves. We supply spare parts for the machines in the line so production can continue through the season without waiting on long-lead imports. Remote diagnosis handles many faults quickly; where an on-site repair is needed, our service team responds directly.

We also carry out annual pre-season visits for equipment inspection, maintenance and technology upgrades, and we can modernize older lines that were supplied by others where the mechanical condition supports it.

Information We Use to Configure Your Solution

A guava line proposal is only as good as the inputs behind it. We prepare the process flow, equipment list, layout and quotation from the following project data:

  • Fruit: cultivar, typical ripeness, seed content, brix and expected seasonal variation.
  • Product: single-strength puree or concentrate, target brix, viscosity and color standard.
  • Capacity: fresh fruit input per hour and daily operating hours during peak season.
  • Packing: aseptic bag size mix, drum or bin format, and whether bag-in-box filling is also required.
  • Site: available floor area, ceiling height, steam and power capacity, water quality and drainage.
  • Scope: full turnkey line or selected machines to integrate with existing equipment.

Our wider portfolio covers adjacent products where the same engineering approach applies, including the mango puree processing line and the tomato paste processing line.

Frequently Asked Questions

What capacity range does the guava line cover?

Our guava puree and concentrate lines are quoted from 2 to 25 tons per hour of fresh fruit input. Smaller pilot and laboratory-scale configurations are available from our broader range when a plant needs to validate a product before committing to a full line.

Can the same line produce both puree and concentrate?

Yes. The base train produces single-strength puree. For a Guava Concentrate Production Line, we add a low-temperature vacuum evaporation stage ahead of sterilization; the evaporator type and effect count are selected from the target brix and the aroma retention you require.

How is the puree packed after sterilization?

Sterilized puree is filled aseptically into bags from 5 L to 220 L or 1000 L, typically in drum or bin format. Bag-in-box filling is available where the distribution format calls for it, and the filler is matched to the bag sizes in your packing plan.

What is tested before the line is shipped?

Each machine completes a full trial operation and water debugging before delivery, and components are inspected against the agreed specification. At site, commissioning moves from water test to product run, with sterilization and filling records included in the handover documentation.

Do you supply individual machines as well as complete lines?

We supply both. Crushers, pulpers and finishers, tube-in-tube sterilizers and aseptic bag-in-drum fillers are available as standalone units for plants that are upgrading an existing line, and we confirm the interface conditions with the surrounding equipment during configuration.

How quickly does Sunshine Machinery respond to an inquiry?

We reply within 12 working hours of receiving an inquiry. Our factory is about 150 km from Shanghai Port, and equipment is shipped mainly by sea under FOB or CIF terms with T/T or L/C payment.
