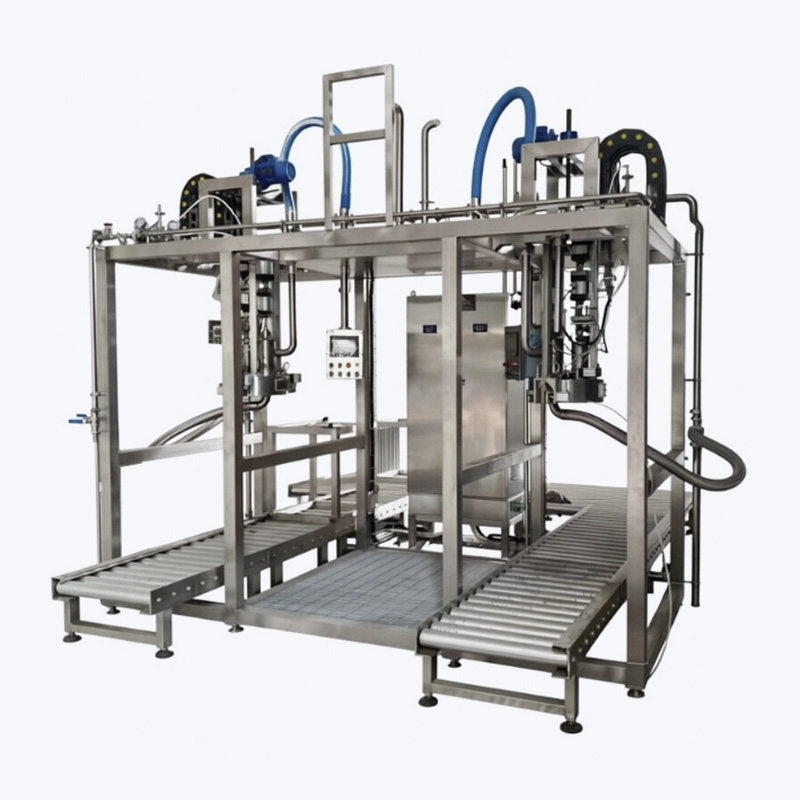

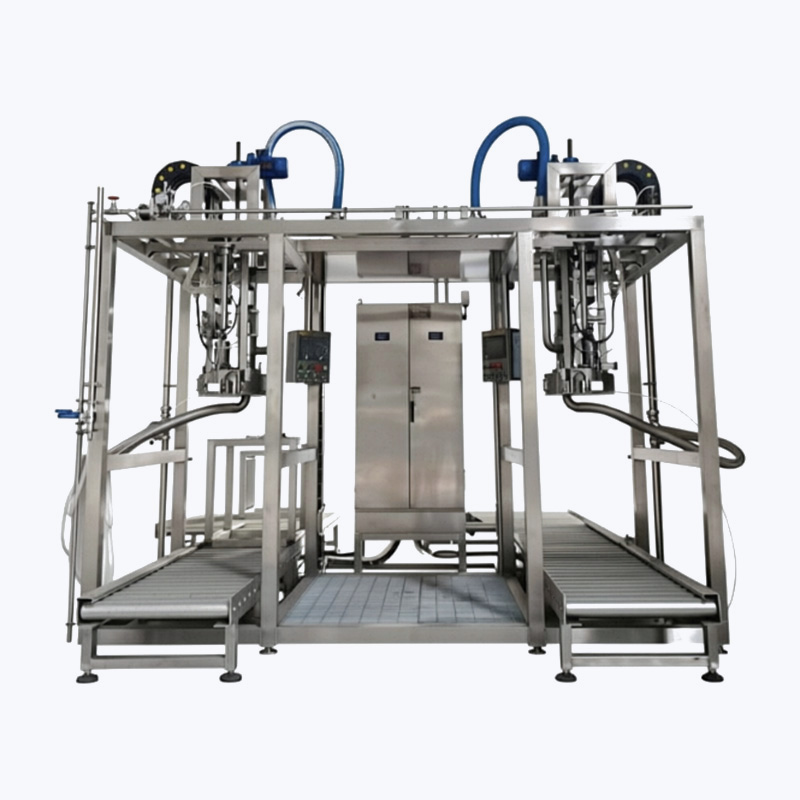

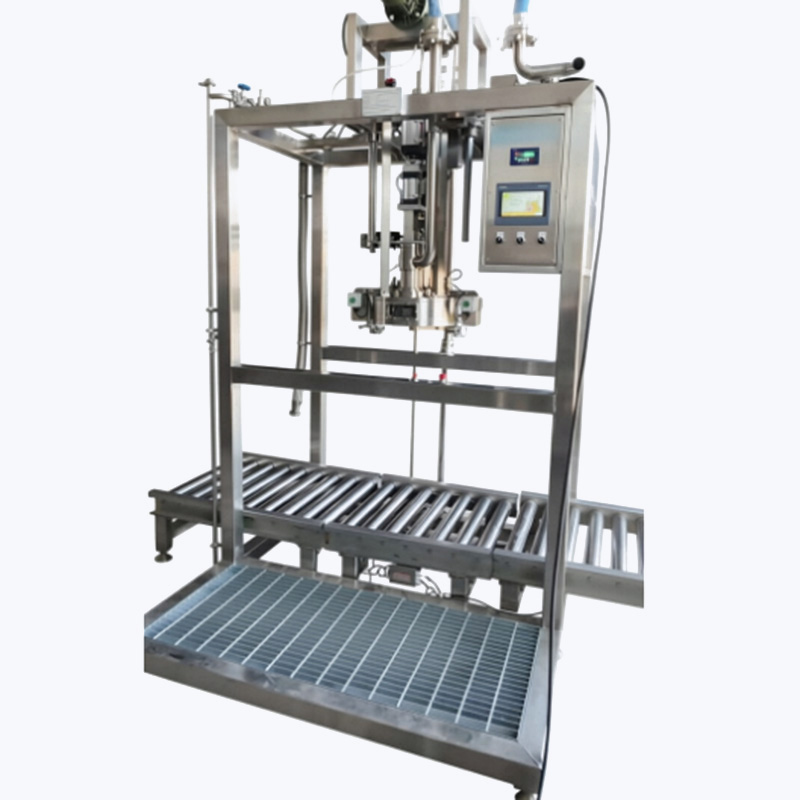

Aseptic BID (Bag in Drum) Filler

Name: Aseptic BID (Bag in Drum) Filler
Rating: 5 (99 reviews)

It is developed and upgraded upon Italian technologies and our so many years’ experience. It is used together with aseptic UHT sterilizer to form an aseptic packaging system which is applied for fruit paste (tomato paste, mango puree, banana puree, peach paste, apricot paste, strawberry jam, chilli paste, etc.), fruit juice concentrate (apple juice, citrus juice, apple juice, pomegranate juice, etc.), fruit juice/paste with pulp/granules, syrup, dairy products and other liquid product. The package is 5L~220L or 1000L enhanced high-barrier aluminum plated/pure aluminum compound film aseptic bag or transparent aseptic bag.

Get A Quote Download

PREV: Aseptic Tube in Tube Sterilizer NEXT:Aseptic BIB(Bag in Box) Filler

Description
Parameter

Description

Description

1. Mainly consist of aseptic filling system, volumetric system, roller conveying system, PLC control system, online label printing system (optional) and operation platform, etc.

2. Sterilize the cap & spout of the bag and the filling chamber by means of steam spraying when running; put the bag into the two clamps by hands; then to open the cap, fill and seal are all finished in the aseptic filling chamber and the whole operation is automatic and controlled by PLC system.

3. CIP and auto SIP available together with the front UHT aseptic sterilizer.

4. Full auto. PLC control system, human machine interface (English/Chinese)operation and manual buttons as standby so as to online monitor and control the whole system’s running.

5. Can be used for different spout structure aseptic bag as per customer’s requirements with customized design on the filling head.

Parameter

Type	SBID1(Single Head)	SBID2(Double Head)
Filling range	5-220L	5-220L
Maximum filling capacity	3000L/H	6000L/H
Filling precision	99.5%	99.5%
Compressed air pressure	≥0.7MPa	≥0.7MPa
Compressed air consumption	10M3/H	20M3/H
Steam pressure	≥0.5 MPa	≥0.5MPa
Compressed air consumption	20KG/H	≥0.5 MPa， 40KG/H
Power	1.5KW	2.5KW
Dimension(LWH)	300016002600mm	330033002600mm
