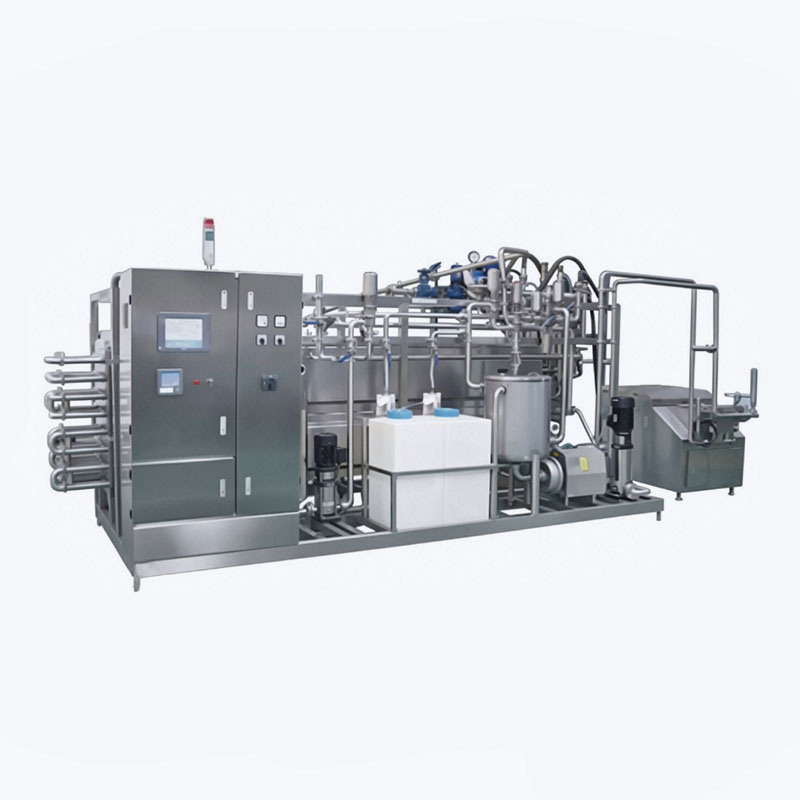

Tubular UHT / Pasteurizer

Name: Tubular UHT / Pasteurizer
Rating: 5 (99 reviews)

It is developed and upgraded upon Italian technologies and our so many years’ experience. It is used together with aseptic bag filler to form an aseptic system which is applied for fruit juice (pineapple juice, citrus juice, apple juice, pomegranate juice, etc.), dairy product and other low viscous & good fluent product.

Get A Quote Download

PREV: Tube in Tube Sterilizer NEXT:No next article

Description
Parameter

Description

Description

1. Suitable to ultra-high temp sterilize single strength fruit juice (pineapple juice, citrus juice, apple juice, pomegranate juice, etc.), dairy product and other low viscous & good fluent product. As well, it can be used for high viscous product (fruit juice/paste) with small capacity (below 1000LPHr) only.

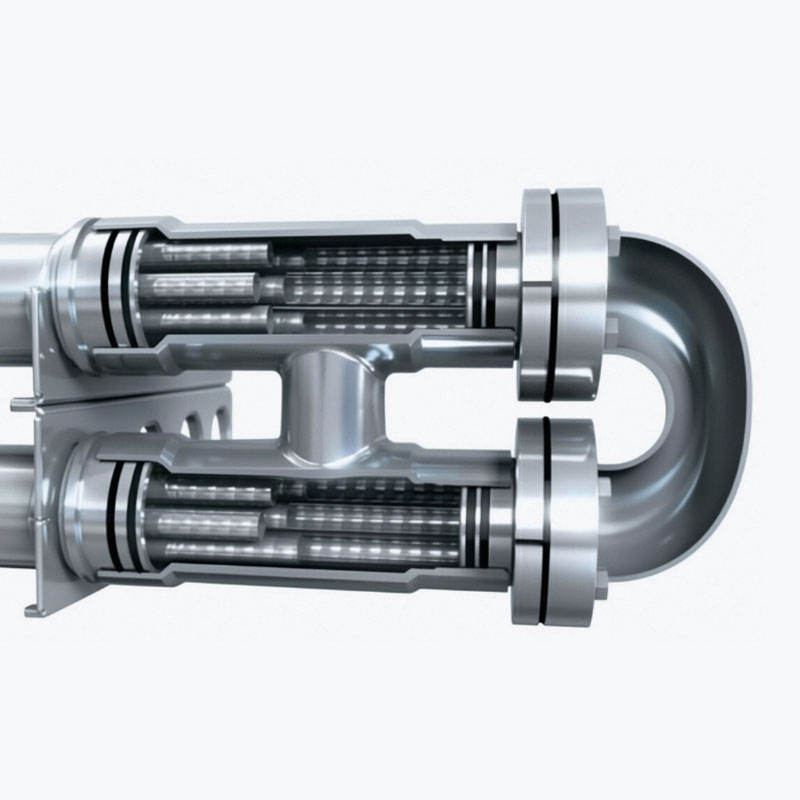

2. Firstly heat the product by superheated water till the sterilizing temp, then hold the product under the temp for a period to sterilize the product thoroughly, then cool down into filling temperature by cooling water or with chilled water together as per the product’s processing requirements. The heat exchange medium run in the external layer tube and the product in the internal layer tube.

3. Full auto. PLC control system, human machine interface (English/Chinese)operation and manual buttons as standby so as to online monitor and control the whole system’s running.

4. The sterilizing temp and time is adjustable.

5. CIP and auto SIP available together with aseptic filler.

Parameter

Type	STITA-1000	STITA-3000	STITA-5000	STITA-8000	STITA-10000
Process capacity (ton/Hr)	1	3	5	8	10
Sterilizing temp.	90~125℃, adjustable
Holding time	30~180S, adjustable
Outlet temp.	Normally 25~40℃, depending on the cooling water’s temperature;8~10℃ if by chilled water
Dimension(LWH, mm)	950021003000	1100021003000	1200026003000	1300031003000	1300034003000
