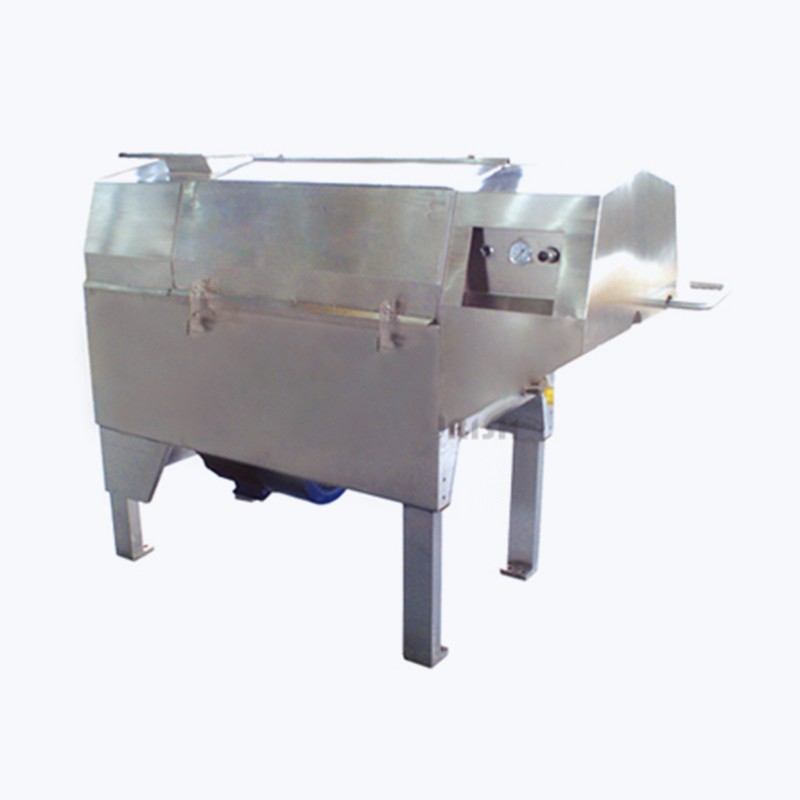

1) Scraper refining machine
It is composed of various components such as the frame, slag hopper, juice collecting tank, framework, lining net, filter screen, scraper, adjusting screw, transmission shaft, feed inlet, feed box, ventilation cover, and transmission motor.
- Operating principle: After entering the feeding box through the feeding port, the material flows into the scraper chamber. Under the centrifugal force of the scraper, the juice separates and flows out of the mesh into the juice collecting tank, while the pulp is discharged through the residue outlet.

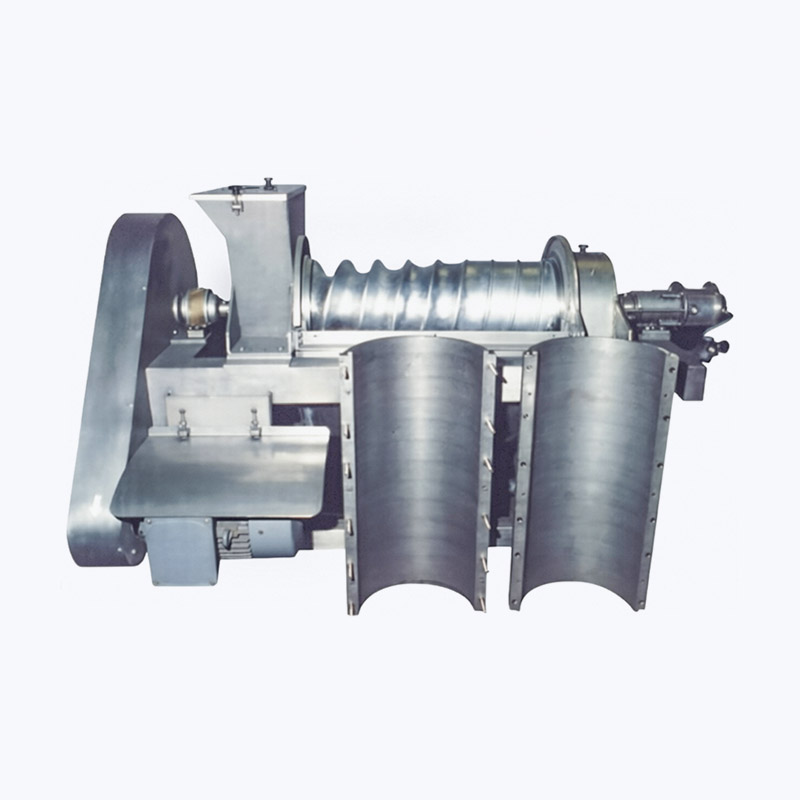

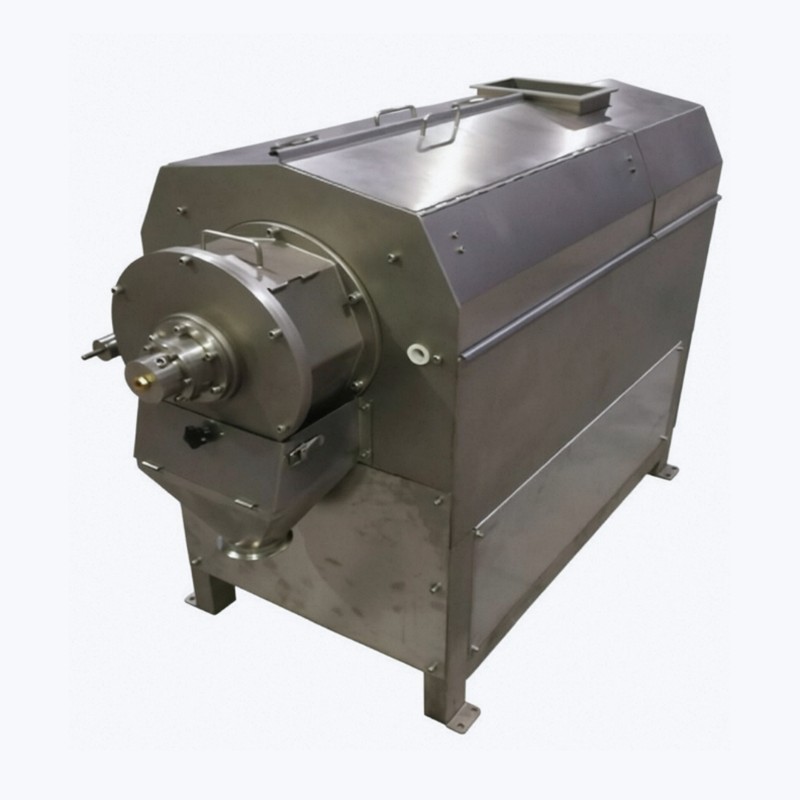

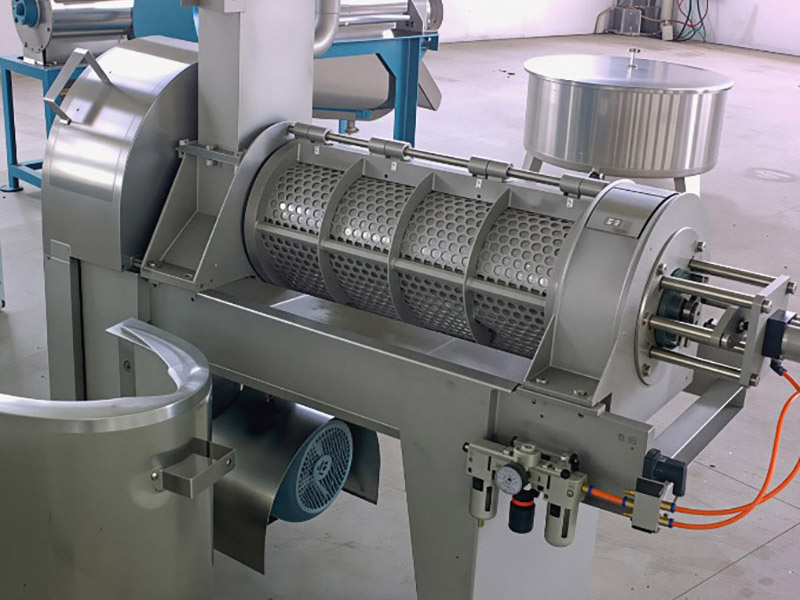

2) Spiral refining machine
It consists of a frame, a slag hopper, a juice collecting tank, a skeleton, a lining net, a filter net, a spiral shaft, a top plate, an air cylinder, a feed inlet, a feed box, a breathable cover, a driving motor, and other components.

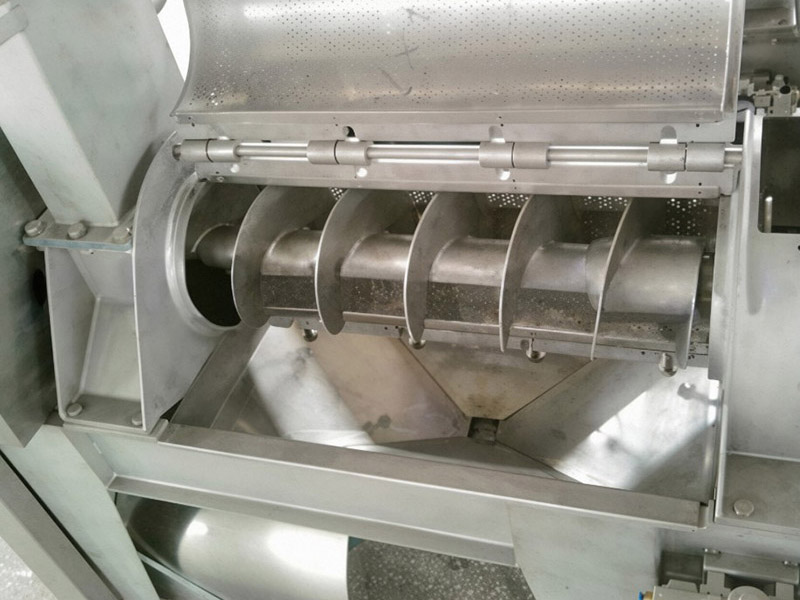

- Operating principle: After entering the feeding box from the feeding port, the material flows into the spiral working chamber. The residual fruit pulp, fibers, and fruit pits in the juice after juicing are pushed out through the spiral, allowing the juice and fruit flesh to pass through the mesh. The residue is discharged from the top tray's residue outlet.
1- Absorbing advanced Italian technology, it has strong adaptability and can effectively achieve the separation of fruit pulp and juice. Depending on different material characteristics and processing requirements, it can choose between scraper-type or spiral-type.
2- The screen mesh is processed using an imported CNC machine tool, ensuring a high open area ratio. Depending on different requirements, screen meshes with varying pore sizes can be replaced.
3- It can effectively separate the pulp from the juice.
4- The internal sealing of the machine is reliable, with no leakage.
5- Made entirely of stainless steel, it meets food hygiene standards.
6- The operation and maintenance are simple, and the operation is stable and reliable.
